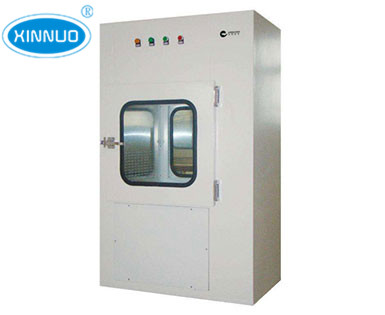

風淋式傳遞窗
The wind drench type transmission Windows
產品介紹 Product introduction
風淋室傳遞窗是具有閘門與門鎖的雙重作用，被傳遞的物品
必須經過風淋后才能進入潔凈室，所以能有效地防止傳遞的物
品將灰塵或細菌帶入潔凈室。
Air shower transmission Windows is a gate lock and the dual
role, is passed Items must be after the cleanroom can enter
after, so can effectively To prevent transmission of the item will dust or bacteria into the clean room.
構成材料：Constitute the materials
●外框：不銹鋼或冷板噴塑處理
●Outer frame of cooling-plate pensu processing: stainless steel or
●內膽：不銹鋼
●Tank: stainless steel
●采用粗效、高效兩級過濾系統
●Using rough effect, efficient filter system
●風機：低振動、低噪音進口或國產風機
●Fan: low vibration, low noise, imported or domestically fan
型號尺寸及其他參數
Standard specification
規格型號 Specifications | XN-C1 | XN-C2 |
外形尺寸（L×W×H）mm Shape dimension | 950×680×1550 | 1120×840×1680 |
內部尺寸（L×W×H）mm Internal dimensions | 600×600×600 | 800×800×800 |
噴嘴數量及風速 Nozzle number and speed | 4、18~22 m/s | 5、18~22 m/s |
電源及功率 Power supply and power | 380V、50HZ、0.75KW | 380V、50HZ、1.1KW |
